The Reliable Choice For Custom Wheel
Hubs & Hub Parts

wheel hubs

Freehub

Shimano\Sram\Campagnolo

Axle

Body

Bearing

S&S\TPI\ENDURO

Ratchet

36T\54T

End Cap

In-depth knowledge about custom wheel hubs and the various parts they consist of.

The market offers a wide variety of road and mountain bike hubs, with prices ranging across a vast spectrum. It begs the question: what sets one hub apart from another, and is it worth spending more on the fancier options? We've received numerous inquiries on this topic, prompting us to provide an overview of crucial factors such as tolerances, materials, surface treatments, and other important details you care.

We're not aiming to cover every single hub model in detail, our goal is to provide you with general guidelines to assist you in identifying the essential features to consider when purchasing a set of hubs.

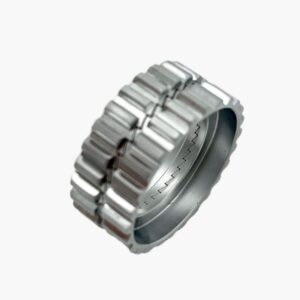

Ratchet

Made of modified steel and passed by 10,000 fatigue tests, with stable and reliable performance.

36T ratchet hub

36T

54T ratchet hub

54T

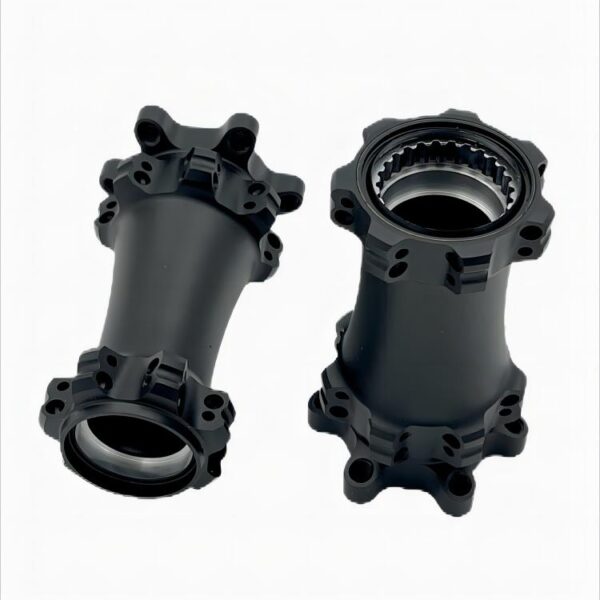

Hub Body

Double-forged with 6061 aluminum alloy, with good flexibility, strong corrosion resistance and excellent surface treatment.

hub body from goosynn

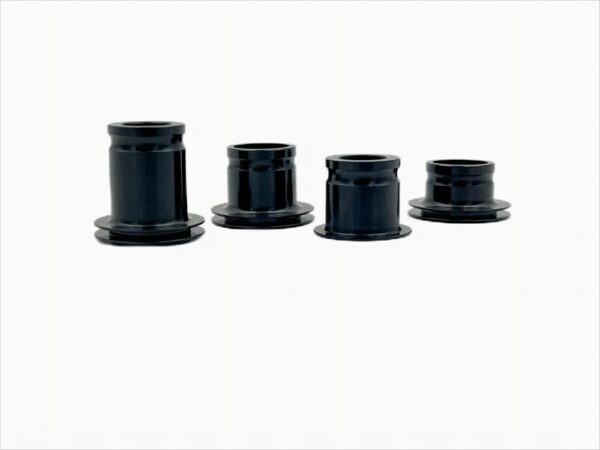

Hub End Cap

Made of 6061 aluminum alloy, with full inspection by go-no go gauge, and the fit tolerance of +/-0.005mm with Thru Axle.

Disc Brake

Front

12mm* 100mm, 15mm* 110mm

Rear

12mm* 142mm, 12mm* 148mm

end cap from goosynn hub

Rim Brake

Front

9mm* 100mm

Rear

10mm* 130mm

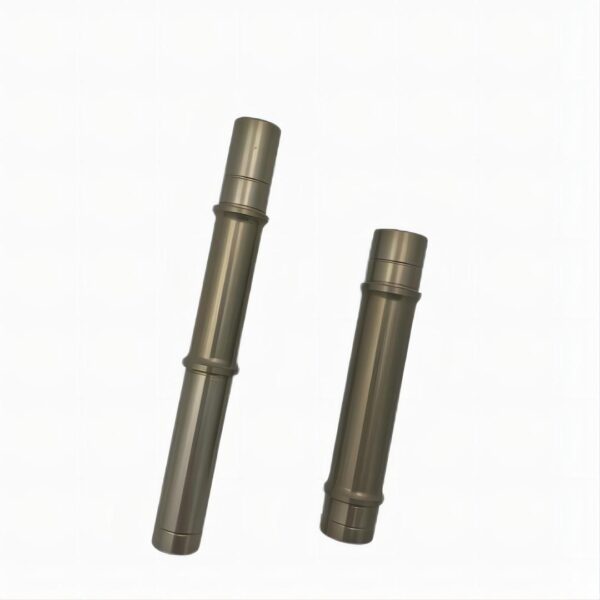

Thru Axle

Extruded with 7075 aluminum alloy, first hard anodized then manually inspected and polished.

hub axle manufacturing
Fit Tolerance

With Bearing

+/-0.002mm

Fit Tolerance

With End Cap

+/-0.005mm

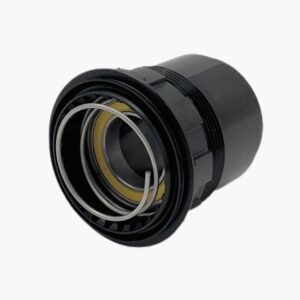

Freehub

Forged with 7075 aluminum alloy, with high precision and highly matched with flywheel.

Shimano

HG/MS

Sram

XD/XDR

Campagnolo

N3W /Ekar 13

freehub for sram xd
freehub for shimano ms

Hub Bearing

S&S steel ball bearings are regularly used (S&S ceramic, TPI and Enduro bearings are optionally available to quote). It is also acceptable that clients provide own bearings.

Steel Ball Bearing

S&S

15267,6802,6803,6902

TPI

15270,6803,6903,6802,6902

ENDURO

15270,6803,6903

hub bearing

Ceramic Bearing | S&S

Front

6803

Rear

15267,6802

Discover the Perfect Custom Wheel Hubs!

68%
Custom wheel hub now


Independent R&D and Production

Custom wheel hub now


Organic Combination of Creativity, Materials & Craftsmanship

Custom wheel hub now


Typical Designs & Individual Prototypes

Email Us

    Customized Service Info

    As one of customized wheel hubs & hub parts  manufacturers, we help customers making it happen from concepts to products.

    We design and prototype as per customers’ specific requirements, we won’t start mass production until the prototype passes the specialized wheel building test.

    Our extensive range of hubs caters to various cycling scenes including road, mountain, gravel, triathlon, FAT, CX and BMX etc. We provide customized solutions as per your personalized needs.
