Understanding Bike Geometry Terms: A Guide for Cyclists

Introduction

When choosing the right bike, understanding its geometry is crucial. Bike geometry directly affects your riding comfort, performance, and overall experience. Whether you’re an avid cyclist, a weekend rider, or someone just getting into the sport, familiarizing yourself with these key terms will help you make more informed decisions and optimize your riding setup. In this guide, we’ll break down the essential bike geometry terms, explaining what they mean and how they impact your ride.

Key Bike Geometry Terms

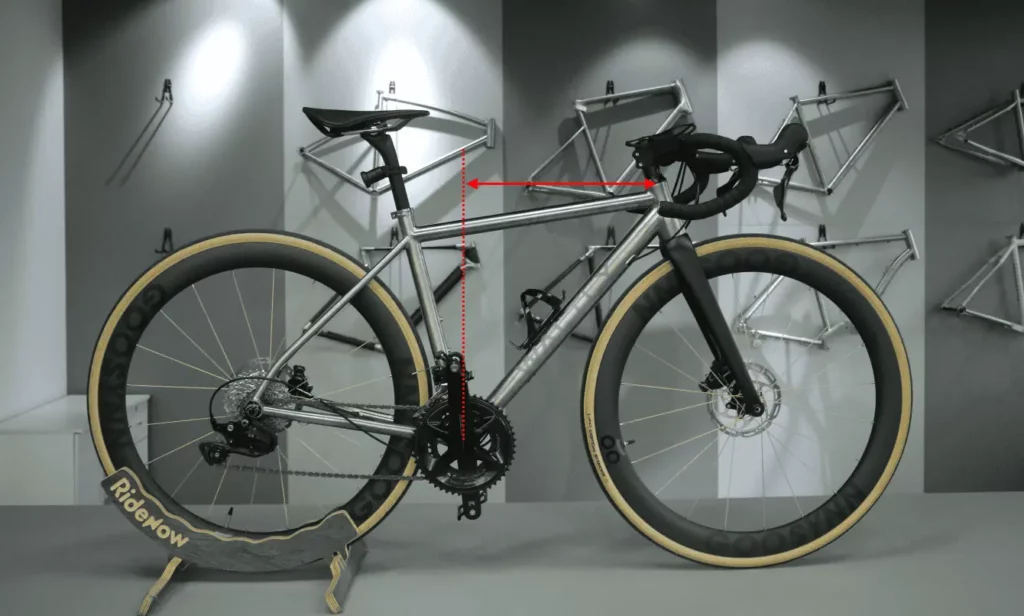

Reach

Reach means the horizontal distance from the center of the bottom bracket (BB) to the top center of the head tube, which is very useful for measuring the length of a bike.

The Reach value determines the size of the space between the arms and the upper torso when riding. The larger the reach value, the more the upper torso, especially the arms, needs to stretch forward. Conversely, the smaller the reach value, the smaller the bending angle of the entire upper torso.

To sum up, reach affects the rider’s posture. a larger reach results in a more forward-leaning position, which is better suited for intense competitions and sports riding.

Stack

Stack means the vertical distance from the center of the bottom bracket (BB) to the center of the head tube.

The larger the Stack value, the more upright and comfortable the riding posture is, which is suitable for long-distance and leisure riding.

The smaller the value, the lower the rider needs to lie down, and the aggressive posture will cause a certain degree of pressure on the upper body, and the back and neck may start to hurt during long-term riding.

In addition, the larger the Stack value, the fewer head tube washers can be used on the bike, and the more options for the angle of the handlebar force.

The tall European and American people have the characteristics of long reach and short stack in the upper body, while the Oriental people are born with the characteristics of short reach and high stack in body shape.

The relationship between Reach and Stack is very important, providing a useful X-Y position for the front of the bike. It is very important to choose the right size bike and adjust the riding posture.

We can also adjust the stem, handlebar, seat, and other components according to these two values to get a more comfortable and efficient riding experience.

Seat Tube Angle

Seat Tube Angle means the angle between the center-line of the seat tube and the horizontal plane, it is also the angle at which the seat tube tilts backward.

A larger (steeper) angle allows you to sit further forward, move your center of gravity forward, and transfer leg power more directly to the pedals, increasing pedaling efficiency.

A smaller (flatter) angle moves your center of gravity further back, providing more comfort and control.

Seat Tube Length

Seat Tube Length means the straight-line distance from the center point of the bottom bracket (BB) to the top of the seat tube. The length and angle of the seat tube co-determine the rider’s center of gravity.

A longer seat tube can slightly raise the center of gravity. A suitable center of gravity position can improve the bike’s handling and stability, especially when turning and accelerating.

Top Tube Length

Top Tube Length means the horizontal distance from the center of the top of the head tube to the center of the seat post (the center of the extension line).

The longer the top tube, the more your upper body will stretch forward. conversely, the shorter the top tube, the more cramped your upper body will feel.

The top tube length provides space for your upper body and allows your arms to perfectly stretch and grip the handlebars.

On the other hand, it also keeps the handlebars and your knees at a safe distance, so that your knees will not hit the handlebars even when you stand up and pedal.

This data is gradually being replaced by reach and stack because it is comprehensive data affected by reach, stack, and seat tube angle.

Head Tube Length

Head Tube Length means the vertical height of the head tube, measured from its top to its bottom.

Head tube length affects stack height and is positively correlated with it.

Front Fork Length

Front Fork Length means the distance from the center of the fork crown to the front wheel axle.

The length of the front fork affects the stacking height and is positively correlated with the stacking height, which together with the length of the head tube determines the stacking height value.

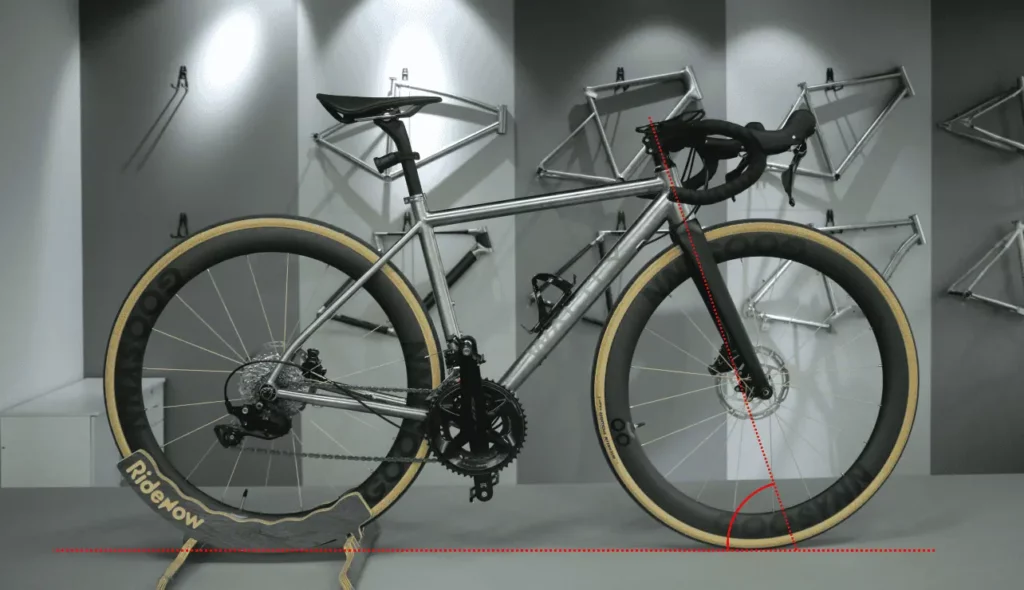

Head Tube Angle

Head Tube Angle means the angle formed between the centerline of the head tube and the horizontal plane. In essence, the head tube angle is the angle of the steering axis.

The larger Angle (steeper) makes the bike more agile and steering responsive, suitable for rides that require fast steering and mobility, such as road racing and city commuting.

The smaller Angle (gentle) steering is less responsive, increasing the stability and handling of the bike in high speed and rough terrain, suitable for mountain biking and off-road rides that require greater stability.

Offset

Offset means the horizontal distance between the steering axis (a line along the center of the head tube) and the front wheel axle.

Trail

Trail means the horizontal distance between the steering axis extension line and the contact point of the front wheel, which is also an important reference index of the control sensation of the bike head.

The track is affected by three factors: wheel diameter, head tube Angle, and front fork offset. The smaller the head tube Angle, the shorter the front fork offset, or the larger the wheel diameter, the larger the trace amount will be.

In general, the larger the trail, the more stable the steering control will be, and the more sensitive the vice versa.

Rear Center
Aka: Chain stay

Rear Center means the distance from the center of the bottom bracket (BB) to the rear wheel axle.

The rear center and front center are combined and correspond to each other, affecting the front and rear weight distribution ratio of the rider on the bike.

Generally speaking, the shorter the rear center, the more sensitive the rear end, the rider’s center of gravity is to the rear, and the less weight is applied to the handlebars. Therefore, when climbing a steep slope, the front of the bike tends to tilt up, and you need to press the handlebars hard to keep it stable.

The longer the rear center, the more stable the rear end, and the rider’s center of gravity is further forward so that the front wheel has better traction when turning sharply. But when going downhill at a large angle, due to braking or other reasons, the rider’s center of gravity may be too forward.

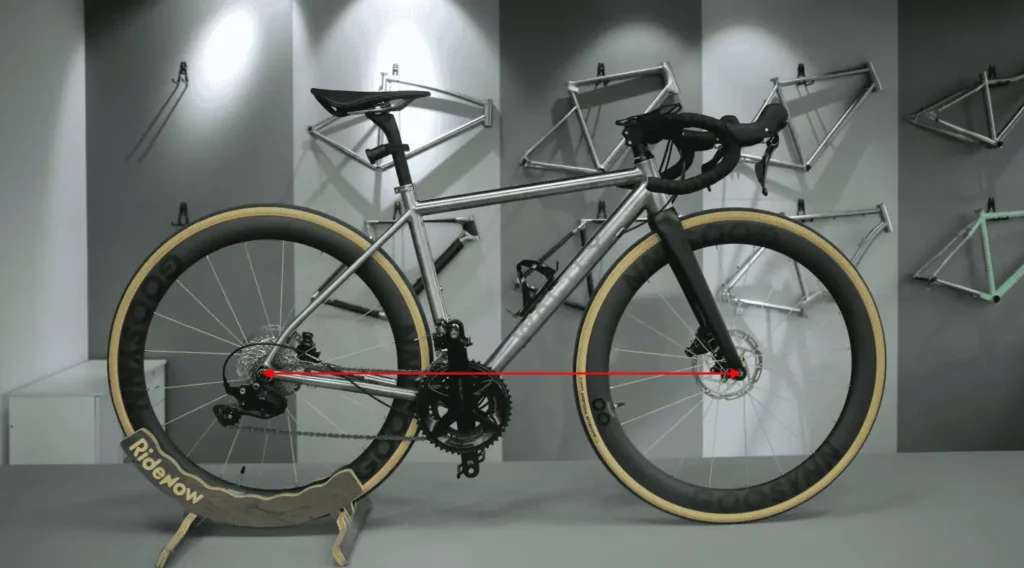

Wheelbase
Wheelbase means the horizontal distance between the front and rear wheel axles, which is affected by factors such as Rear Center, Head tube, and Offset.

A longer wheelbase can maintain better stability but requires more turning space, while a shorter wheelbase can improve the steering sensitivity and handling of the bike.

The wheelbase also affects the compatibility of the tire, especially for bikes that require wide tires (such as mountain bikes), a long wheelbase can provide more tire clearance.

BB Height

BB Height means the vertical distance from the center of the bottom bracket (BB) to the ground.

BB height determines the height of the rider’s center of gravity. Generally speaking, the higher the BB height, the higher the rider’s overall center of gravity.

A lower BB height can provide better stability because the rider’s center of gravity is lowered, allowing for smoother cornering when cornering.

A higher BB height can improve the bike’s passability and is suitable for off-road and rugged terrain, but a higher center of gravity may reduce the bike’s overall stability, especially when facing sudden braking, fierce collisions, and steep slopes.

BB Drop

BB Drop means the vertical descent distance from the center of the bottom bracket (BB) to the wheelbase.

BB Drop is closely related to BB height. The smaller the BB Drop, the higher the BB height. The larger the BB Drop, the lower the BB height.

Standover

Standover means the vertical distance from the top of the top tube to the ground.

Seat tube length affects standover height, with a longer seat tube resulting in a higher standover height, and a shorter seat tube resulting in a lower standover height.

The standover height affects whether the rider’s crotch will be supported by the top tube when getting off the bike or stopping temporarily. Sufficient standover height ensures that the rider can easily step over the top tube. When an emergency stop is required, the rider can quickly put his feet on the ground to avoid falling.

Conclusion

Understanding these bike geometry terms is essential for any cyclist looking to optimize their riding experience. Each term plays a crucial role in how a bike fits and performs, influencing everything from comfort and control to speed and stability. By familiarizing yourself with these concepts, you can make more informed decisions when selecting or customizing a bike, ensuring that it meets your specific riding needs and preferences.
